Stainless Steel Small Cable Sheaves

1.5" - 6" Stainless Steel Small Cable Sheaves

Designed for cables 1/2″ and under, eSheaves Small Cable Sheaves offer an in-stock, ready to ship solution for almost any application. Whether you select steel or stainless steel, all small cable sheaves are turned from drawn bar stock to provide strength and durability. All bearings are engineered for high load applications running at medium speed. Oil impregnation provides permanent self lubrication. Learn more about applications and available configurations below.

Ready to order a small cable sheave? Visit the esheaves shop to locate the exact sheaves you need.

Don’t see what you need? No Problem! Additional modifications are available upon request to meet your requirements. Simply complete a request for small cable sheave quotation and we will provide a price and delivery.

sheave spare parts
steel sheaves with bearing

Small Cable Sheaves - Stainless Steel with Bronze Bearings/Inserts

  • All stainless steel small cable sheaves ship from Stock
  • All stainless steel small cable sheaves are turned from cold drawn bar stock
  • All stainless steel small cable sheaves are Zinc Electroplated
  • All stainless steel small cable sheaves come with Bronze bearings engineered for high load and medium speeds
  • All stainless steel small cable sheave bearings are oil-impregnated for permanent self lubrication
  • All small cable sheaves are available in steel
Stainless Steel Sheaves

Stainless Steel Sheaves with Bronze Bearings (1.5″ to 5″)

MaximumTreadBearingSheaveBearingWeightWLL
ODCable SizeDiameterBoreWidthWidthLbsLbsItem #
1.50.18810.50.4370.468750.2525100071
20.1881.50.50.4370.468750.3600100075
2.50.2520.50.4370.468750.5685100079
30.252.50.50.4370.468750.8800100083
30.3122.50.50.4370.468750.8800100087
3.50.31230.750.6250.68751.31550100089
3.50.37530.750.6250.68751.31550100091
40.3753.250.750.6250.68751.81700100093
50.3754.250.750.6250.68752.91850100095

steel sheaves with bearing

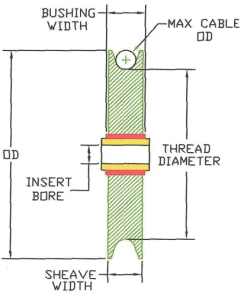

Stainless Steel Sheaves with Stainless Steel Inserts (1.5″ to 5″)

MaximumTreadInsertSheaveInsertWeightWLL
ODCable SizeDiameterBoreWidthWidthLbsLbsItem #
1.50.18810.250.4370.50.2525100068
1.50.18810.3750.4370.50.2525100070
20.1881.50.250.4370.50.3600100072
20.1881.50.3750.4370.50.3600100074
2.50.2520.250.4370.50.5685100076
2.50.2520.3750.4370.50.5685100078
30.252.50.250.4370.50.8800100080
30.252.50.3750.4370.50.8800100082
30.3122.50.250.4370.50.8800100084
30.3122.50.3750.4370.50.8800100086
3.50.312530.3750.6250.751.31550100088
3.50.37530.3750.6250.751.31550100090
40.3753.250.3750.6250.751.81700100092
50.3754.250.3750.6250.752.91850100094

stainless Steel Bearing Inserts

Stainless Steel Inserts (1.5″ to 5″)

ODBoreWidthWLLItem #
0.50.250.5N/A100124
0.50.31250.5N/A100125
0.50.3750.5N/A100126
0.750.3750.75N/A100127

Shop Small Cable Sheaves

Know the size and style of small cable sheave you need? Visit the eSheaves shop to select from a variety of sizes, materials, and bearing types in stock and ready to ship.

Additional Small Cable Sheaves

medical small pulleys

1.5" to 5" Steel Sheaves - Bronze Bearings & Inserts

Zinc-Plated steel sheaves turned from drawn bar stock. Oil impregnated bronze bearings for high load and medium speed. Steel Inserts available to match existing shaft diameter.

steel sheaves with bearing

4", 5", and 6" Steel Sheaves - Plain Bore or Ferrous Bronze Bearing

Zinc-Plated steel sheaves turned from drawn bar stock. Available with plain bore or bearing. Oil impregnated ferrous bronze bearings for high load and medium speed.
