Replacement Bomco Sheaves & Pulleys
Do you manufacture electrical wire & cable, medical tubing, optical fibers or similar products? eSheaves engineers & sells a complete line of SX POLYMER replacement Bomco sheaves and pulleys for processing of linear products. Our Process Sheaves® line of plastic lightweight pulleys for Wire and Cable Manufacturing provides you with high quality products for your production equipment, along with the exceptional service and expert engineering advice you expect from eSheaves.com.

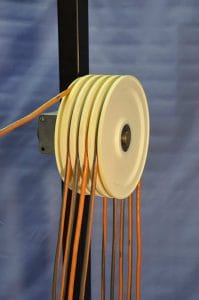

- V-GROOVE INTERLOCKING SHEAVES
- PLASTIC FLYER SHEAVES
- U-GROOVE INTERLOCKING SHEAVES
- SPACERS AND BUSHINGS
REPLACEMENT BOMCO SHEAVES APPLICATIONS
- Insulated Wire
- Tubing
- Synthetic Rope
- Bright Carbon, Galvanized, and Stainless steel wire
- Flat or round wire
- Copper and copper alloy wires (Brass, Bronze, etc)
- Small cord or aircraft cable, bare or insulated
- Low to high speed processing
PLASTIC INTERLOCKING SHEAVES - METRIC BORE
Plastic V-Groove Interlocking Sheaves-Metric Bore
| Root Dia. | Old Bomco Number | OD | Maximum Product | Nominal Width | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|
| 4 | B1040 | 4.5 | 0.18 | 0.39 | 0.53 | 17mm | 151040 |
| 5 | B1050 | 6 | 0.18 | 0.47 | 0.59 | 17mm | 151050 |
| 6 | B1060 | 7 | 0.2 | 0.71 | 0.98 | 20mm | 151060 |
| 7 | B1070 | 8 | 0.18 | 0.59 | 0.76 | 20mm | 151070 |
| 8 | B1080 | 9 | 0.16 | 0.59 | 0.77 | 25mm | 151080 |
| 10 | B1100 | 11 | 0.18 | 0.63 | 0.9 | 30mm | 151100 |
Plastic U-Groove Interlocking Sheaves-Metric Bore
| Root Dia. | Old Bomco Number | OD | Maximum Product | Nominal Width | OAW | Bearing Bore | Item Number |
|---|---|---|---|---|---|---|---|
| 8 | B2080 | 9.83 | 0.36 | 0.74 | 0.89 | 30mm | 152080 |
| 9 | B2090 | 10.69 | 0.74 | 0.99 | 1.14 | 30mm | 152090 |
| 10 | B2011 | 11 | 0.34 | 0.51 | 0.6 | 30mm | 152100 |
| 12 | B2120 | 13.5 | 0.5 | 0.74 | 0.86 | 30mm | 152120 |
About SX Polymer
SX Polymer is a new thermoset material that has very good wear and strength characteristics with an operating temperature up to 250º F.
Spacers & Bushings
- Buna O-Ring Spacers provided at no charge on multiple sheave orders
- Non-Standard Bearings quoted on request
Custom Sheaves
If none of these standard sheaves meet your requirements, we will work with you to develop new designs or modify existing designs to exactly suit your requirements with short lead times and competitive prices. Learn More About Custom Process Sheaves
Shop Process Sheaves
Know the size and style of wire and cable processing sheave you need? Visit the eSheaves shop to select from a variety of sizes, materials, and bearing types in stock and ready to ship.
Additional Products available from Process Sheaves
Stock Wire and Cable Processing Sheaves
Choose from a variety of in stock and existing variations. Perfect for low and high speed applications, and for processing insulated wire, synthetic rope, tubing, wire, cable and other linear products. Sheave materials include Aluminum, Alum-Ceramic, SX Polymer, Cast Nylon, and other plastics. U-Groove, V-Groove, Flat-Groove, and Interlocking styles available in a range of both imperial and metric sizes. Need plastic sheaves? No Problem!
Custom Wire and Cable Processing Sheaves
Replace your discontinued Bomco sheaves with high quality, SX Polymer process sheaves. Exact replacements available in both U-Groove and V-Groove interlocking styles.
Wire and Cable Processing Sheave Materials
Process sheaves are available in a wide range of materials to handle any processing application, Abrasive or flexible, flat or round, high speed or low, our pulleys can be made with the exact performance level to meet your requirements. Learn more about the materials used to make our stock and custom wire and cable processing sheaves.
